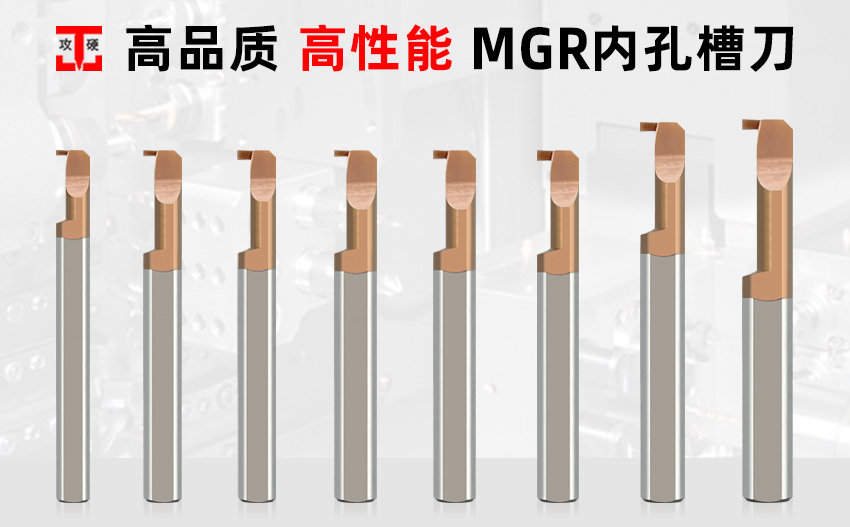

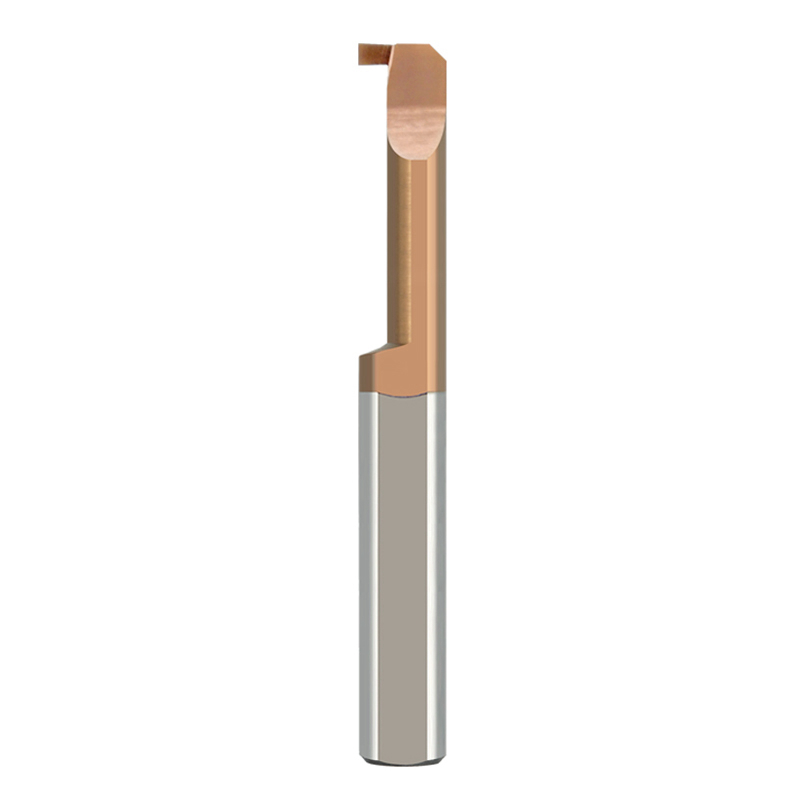

MGR钨钢内孔槽刀
| MGR钨钢内孔槽刀产品信息 | |||
| 品牌 | 攻硬 | 材质 | 优质钨钢 |
| 加工材料 | 加工材料不锈钢、钢件、钛合金、高温合金等50度以下材料 | ||
| 优势特点 | 纳米耐磨涂层，刃口锋利，高光洁度，高效稳定 | ||
| MGR钨钢内孔槽刀规格参数表 | |||||||
 | |||||||

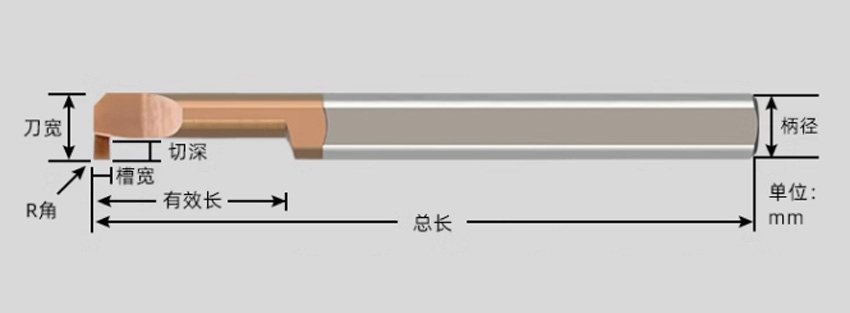

| 型号 | 刀宽 | 槽宽 | 切深 | R角 | 避空 | 柄径 | 总长 |
| MGR4-1.0-1.0-L10-D4-50L | 3.7 | 1.0 | 1.0 | R0.05 | 10 | 4 | 50 |
| MGR4-1.0-1.0-L15-D4-50L | 3.7 | 1.0 | 1.0 | R0..05 | 15 | 4 | 50 |
| MGR4-1.5-1.0-L10-D4-50L | 3.7 | 1.5 | 1.0 | R0.05 | 10 | 4 | 50 |
| MGR5-1.0-1.2-L15-D5-50L | 4.8 | 1.0 | 1.2 | R0.1 | 15 | 5 | 50 |
| MGR5-1.0-1.2-L22-D5-50L | 4.8 | 1.0 | 1.2 | R0.1 | 22 | 5 | 50 |
| MGR5-1.5-1.2-L15-D5-50L | 4.8 | 1.5 | 1.2 | R0.1 | 15 | 5 | 50 |
| MGR5-1.5-1.2-L22-D5-50L | 4.8 | 1.5 | 1.2 | R0.1 | 22 | 5 | 50 |
| MGR5-2.0-1.2-L15-D5-50L | 4.8 | 2.0 | 1.2 | R0.1 | 15 | 5 | 50 |
| MGR5-2.0-1.2-L22-D5-50L | 4.8 | 2.0 | 1.2 | R0.1 | 22 | 5 | 50 |
| MGR6-1.0-1.4-L15-D6-50L | 5.8 | 1.0 | 1.4 | R0.15 | 15 | 6 | 50 |
| MGR6-1.0-1.4-L22-D6-50L | 5.8 | 1.0 | 1.4 | R0.15 | 22 | 6 | 50 |
| MGR6-1.5-1.4-L15-D6-50L | 5.8 | 1.5 | 1.4 | R0.15 | 15 | 6 | 50 |
| MGR6-1.5-1.4-L22-D6-50L | 5.8 | 1.5 | 1.4 | R0.15 | 22 | 6 | 50 |
| MGR6-2.0-1.4-L15-D6-50L | 5.8 | 2.0 | 1.4 | R0.15 | 15 | 6 | 50 |
| MGR6-2.0-1.4-L22-D6-50L | 5.8 | 2.0 | 1.4 | R0.15 | 22 | 6 | 50 |
| MGR7-1.0-2.5-L15-D7-60L | 6.8 | 1.0 | 2.5 | R0.15 | 15 | 7 | 60 |
| MGR7-1.0-2.5-L22-D7-60L | 6.8 | 1.0 | 2.5 | R0.15 | 22 | 7 | 60 |
| MGR7-1.0-2.5-L30-D7-60L | 6.8 | 1.0 | 2.5 | R0.15 | 30 | 7 | 60 |
| MGR7-1.5-2.5-L15-D7-60L | 6.8 | 1.5 | 2.5 | R0.15 | 15 | 7 | 60 |
| MGR7-1.5-2.5-L22-D7-60L | 6.8 | 1.5 | 2.5 | R0.15 | 22 | 7 | 60 |
| MGR7-1.5-2.5-L30-D7-60L | 6.8 | 1.5 | 2.5 | R0.15 | 30 | 7 | 60 |
| MGR7-2.0-2.5-L15-D7-60L | 6.8 | 2.0 | 2.5 | R0.15 | 15 | 7 | 60 |
| MGR7-2.0-2.5-L22-D7-60L | 6.8 | 2.0 | 2.5 | R0.15 | 22 | 7 | 60 |
| MGR7-2.0-2.5-L30-D7-60L | 6.8 | 2.0 | 2.5 | R0.15 | 30 | 7 | 60 |
| MGR8-1.0-1.7-L22-D8-65L | 7.8 | 1.0 | 1.7 | R0.2 | 22 | 8 | 65 |
| MGR8-1.5-1.7-L22-D8-65L | 7.8 | 1.5 | 1.7 | R0.2 | 22 | 8 | 65 |
| MGR8-2.0-2.6-L22-D8-65L | 7.8 | 2.0 | 2.6 | R0.2 | 22 | 8 | 65 |
